Digital audio processor optimized for DAB+ HD Radio

Multiband digital audio processor, with loudness control in compliance with ITU-R.BS1770, optimized for DAB+ and HD Radio broadcasting.

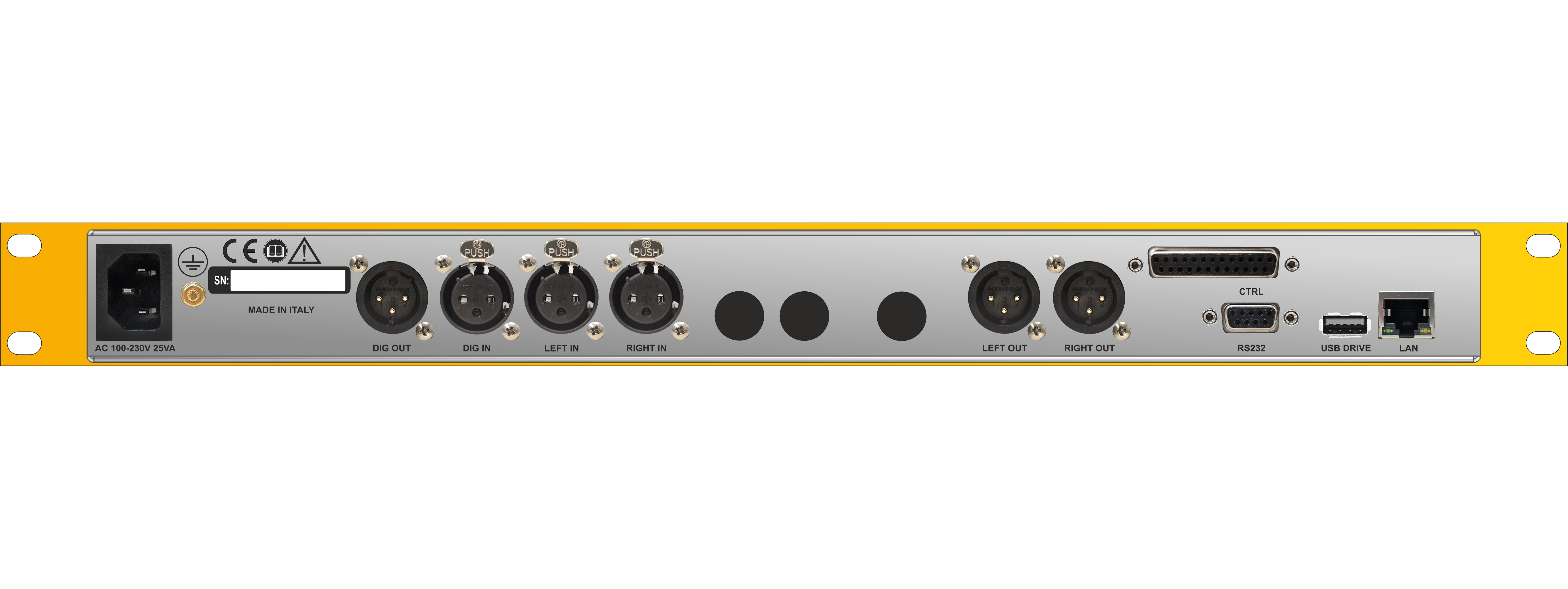

ITEL Digital audio processor optimized for DAB+ HD Radio

Art. DPRO6 HD

Product available

D-PRO 6 is a digital multiband audio processor optimized for DAB+ and HD Radio broadcasting.

The audio processing chain comprises a two bands AGC which feeds the six bands limiter-compressor, followed by a final clipper-limiter operating at 96KHz, optimized for distortion masking, thus obtaining a cleaner and clipping  artifacts free sound.

The audio processing are realized through DSPs, allowing a stable operation over time and the possibility to implement new functions through software updates.

The loudness limiter can equalize the perceived loudness among different audio program sources such as live shows, commercials, films, music videos.
It operates according to the ITU-R BS.1770 standard.

All outputs will be bypassed to their respective inputs in case of malfunction.

Analog audio input
Sampling frequency 48KHz/24bits
Input level +12/-12dBu
XLR connectors, electronically balanced

Digital audio input
Accepts AES/EBU and SPDIF sample rates from 32 to 96KHz, XLR connector with balanced transformer

Analog audio output
Output level +12/-12dBu
XLR connectors, electronically balanced

Digital audio output
AES/EBU 48KHz, with balanced transformer

Headphones output
1/4" front panel jack
Output: 100mW RMS over 50 ohm

Latency
Audio processor 8mS

Loudness control ITU-R BS.1770 standard

Remote control
All functions can be managed remotely with an included software.

Interfaces
RS-232 (standard on all models)
Ethernet streaming card (optional)
Ethernet UDP card (optional)

Power supply
100-240VAC 50/60Hz

Physical
1 x 19" rack unit
44mm x 483mm x 156mm
Weight 2,5 Kg
